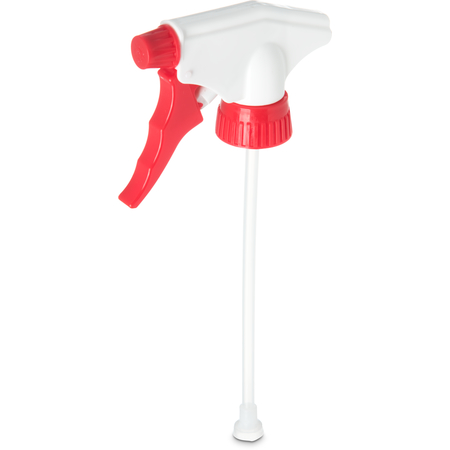

1.3 CC Universal Plastic Trigger Sprayer

    Views:

    Material: PP
    Seal: Fluororubber
    Spring: 304 stainless steel
    Interface standard: 28/410, 28/415, 32/410
    Pump height: 80-150mm
    Spray mode: Mist/column/fan/off four-speed adjustment
    Liquid output: 0.6ml-1.4ml
    Press life: ≥100,000 times/≥50,000 times

  • Content

    Views:

    Material: PP
    Seal: Fluororubber
    Spring: 304 stainless steel
    Interface standard: 28/410, 28/415, 32/410
    Pump height: 80-150mm
    Spray mode: Mist/column/fan/off four-speed adjustment
    Liquid output: 0.6ml-1.4ml
    Press life: ≥100,000 times/≥50,000 times

Core technology advantages - redefine the spray experience


[Hardcore material・100,000 times durable]

All-plastic corrosion-resistant structure:

The main body adopts food-grade PP (polypropylene) + TPE (thermoplastic elastomer), which is resistant to -20℃~80℃ temperature shock, and resistant to chemical corrosion such as alcohol, acid and alkali (stable in the pH range of 3-12).

Key components: 304 stainless steel spring + fluororubber seal, passed 100,000 times of pressing test (more than 5 times the industry standard), long-term use without jamming and leakage.

Safety certification:

FDA food contact certification (applicable to edible oil, skin care products), CE certification (compliant with EU mechanical safety standards), ROHS certification (no harmful substances).

Environmental design:

Provide PCR recycled plastic (recycling ratio ≥30%), bio-based PLA material options, in line with the requirements of the EU "New Plastic Strategy".


[Ergonomics and comfortable control]

Trigger mechanics optimization:

Pressing force 8-15N (children's version ≤8N), the trigger arc fits the index finger joint, reduces hand fatigue, and supports one-handed continuous operation.

Child safety lock: Rotary locking design to prevent accidental touch (in line with ASTM F963 children's product safety standards).

Convenient maintenance:

Disassembled nozzle (anti-clogging design) + transparent window (observe remaining liquid), support quick cleaning and replacement to avoid residual blockage.


[Full specification adaptation and flexible customization]

Interface compatibility:

Supports international standard threads such as 28/410, 28/415, 32/410, etc., suitable for round bottles, square bottles, and special-shaped bottles (30-500ml packaging is fully covered), plug and play without mold modification.

Customized service:

Function customization: liquid output 0.6-1.4ml/time adjustable, high pressure resistance (up to 3bar), anti-siphon design (avoid liquid reflux pollution).

Appearance customization: matte/glossy surface treatment, full Pantone color options, LOGO embossing/UV printing to enhance brand recognition.


Diverse application scenarios

Full-scenario application - covering 8 major industry needs

1. Home cleaning field

Kitchen scene:

Oil cleaner (column mode precise spray), tableware disinfectant (mist uniform coverage)

Advantage matching: alkaline-resistant material (pH 12) + anti-clogging nozzle (disassembled for cleaning), to cope with complex cleaning environment.

Bathroom scene:

Toilet disinfectant (fan mode fast coverage), glass anti-fog spray (mist fine without flow marks)


2. Medical care field

Medical scene:

Rinse-free alcohol spray (mist), wound care solution (column)

Advantage matching: Passed EU MDR medical device certification, sterile packaging and transportation, nozzle can be sterilized at high temperature (121℃/30 minutes).

Maternal and child scene:

Baby bottle cleaner (mist), mosquito repellent (fan)


3. Automobile and industrial field

Automotive care:

Glass water (mist), engine cleaner (column)

Advantage matching: enhanced oil resistance (compatible with kerosene and diesel), normal use in low temperature environment of -20℃.

Industrial scenarios:

Metal rust inhibitor (mist), lubricant (column)


4. Horticulture and agriculture

Horticulture plant protection:

Insecticide (fan-shaped), foliar fertilizer (mist)

Advantage matching: wind shield design (reduce wind interference) + extended spray rod (up to 1.5 meters) to improve outdoor work efficiency.

Agriculture scenarios:

Herbicide (column), fungicide (fan-shaped)


1.3 CC Universal Plastic Trigger Sprayer
